Online TSS digital sensor

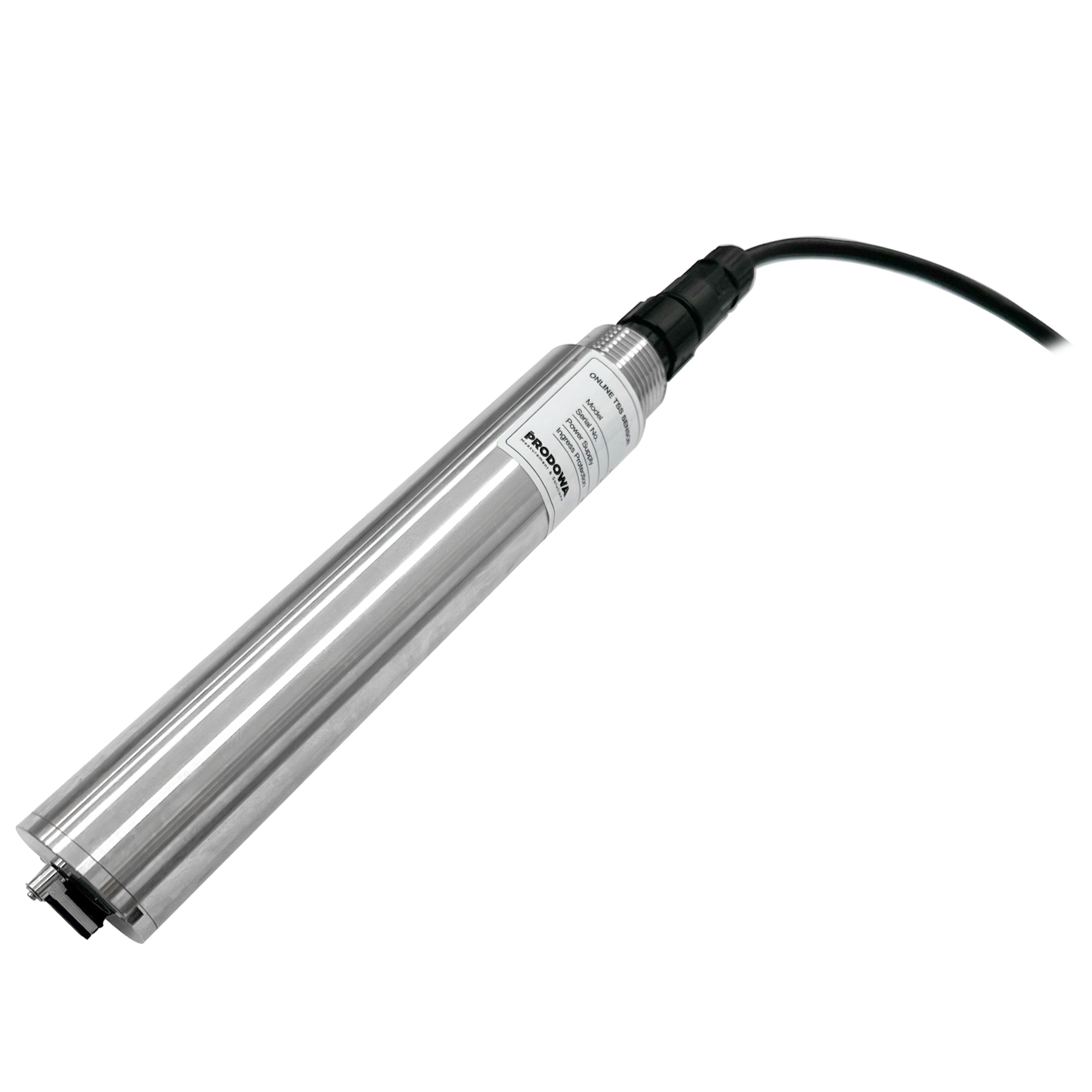

PSS100
The PSS100 is an Infrared Scattering optical sensor designed for real-time measurement of TSS – Total Suspended Solids in wastewater, surface water, and industrial water treatment applications. It provides continuous and stable monitoring with high reliability and low operating cost.
Tính năng nổi bật
- Infrared optical measurement, minimally affected by water color.
- Wide measurement range suitable for various wastewater conditions.
- High accuracy with long-term stability.
- No reagents required, low operating cost.
- IP68 protection for harsh and submerged environments.
- Built-in temperature sensor with automatic compensation.
- Automatic wiper cleaning system to reduce fouling.
Get quotation
Support
+84- 0963919729
Product details
Specifications
| Measurement method | Tán xạ quang học 90° |
| Range | 0…2000 mg/L |
| Resolution | 0.01 mg/L |
| Accuracy | ±5% F.S. |
| Response time | ≤10 s |
| Calibration method | Two-point calibration |
| Material |
Body sensor: SS316 |
| Operating conditions | 0…50°C, <0.1 MPa |
| Power supply | 12...24 Vdc |
| Power consumption | 0.3W @12 V |
| Protection level | IP68 |
Applications
- Urban wastewater treatment
- Industrial effluent treatment
- Surface water monitoring
- Fish farming and aquaculture
- Drinking water monitoring
