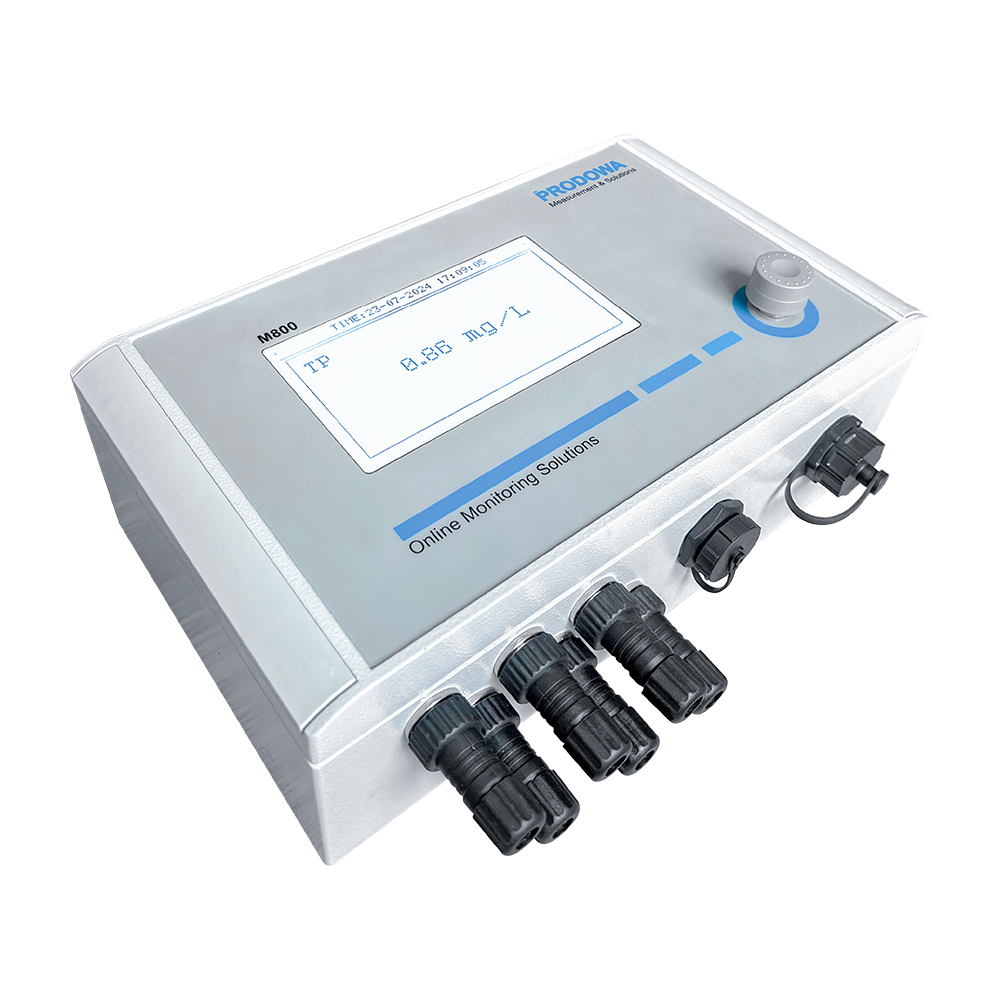

Multi-parameter digital controler
M800

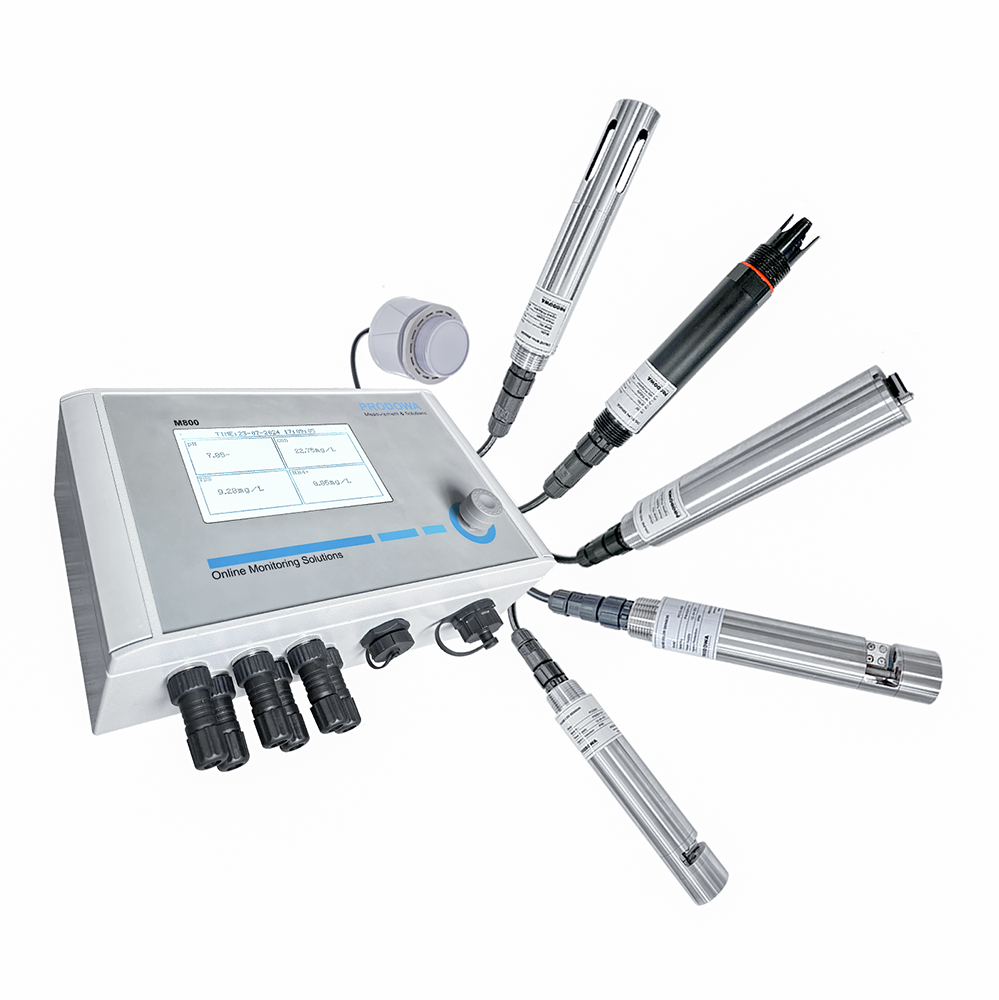

The M800 Controller is a next-generation industrial measurement controller designed for automatic water monitoring applications requiring high stability and reliability. The device supports simultaneous connection of up to 5 sensors, enabling continuous monitoring of multiple water quality parameters in a single integrated system. It is capable of integrating open channel flow measurement and can transmit data directly to online monitoring platforms, web, and mobile applications.
Measurable Parameters
- pH
- Temperature
- COD
- TSS (Total Suspended Solids)
- Ammonium (NH4+)
- Color
- Open channel flow
- Total Nitrogen (TN)
- Total Phosphorus (TP)
- Dissolved Oxygen (DO)
- Turbidity
- Conductivity
- Salinity
Key Features
- Industrial-grade design with high durability for harsh environments
- Standard communication interfaces: Modbus, RS485
- Multi-parameter display with intuitive visualization
- 24/7 continuous monitoring
- Measurement status indication (measuring, calibration, error…)
- Direct connection to online monitoring platforms
- Output interfaces: 4–20 mA, relay
Get quotation
Support
+84- 0963919729
Product details
Specifications
| Sensor inputs | 05 sensor inputs (expandable up to 25 sensors) |
| Data storage | Supports data storage up to 64GB (>800,000 data points) |
| Modbus RTU | Support 1xRS-485 slave |
| Output | 2 x Relay, 2 x 4-20mA |
| Power suplly | 24VDC/220VAC |
| Display | 240*128 pixel LCD screen |
| Ingress protection | IP65 |
| Dimension | 260x150x90mm (LxWxH) |
| Material | Aluminium |
| Operating conditions | Operating temperature -10..50°C Storage and transport -25..65°C Humidity 10-95% (non-condensing) |
| Installation | Wall-mount |
| Communication data | Support MQTT protocol via Ethernet port (option) |
Applications
- Urban wastewater treatment
- Industrial effluent treatment
- Surface water monitoring
- Fish farming and aquaculture
- Drinking water monitoring
