In the context of increasingly strict environmental regulations, monitoring the entire wastewater treatment process is mandatory.

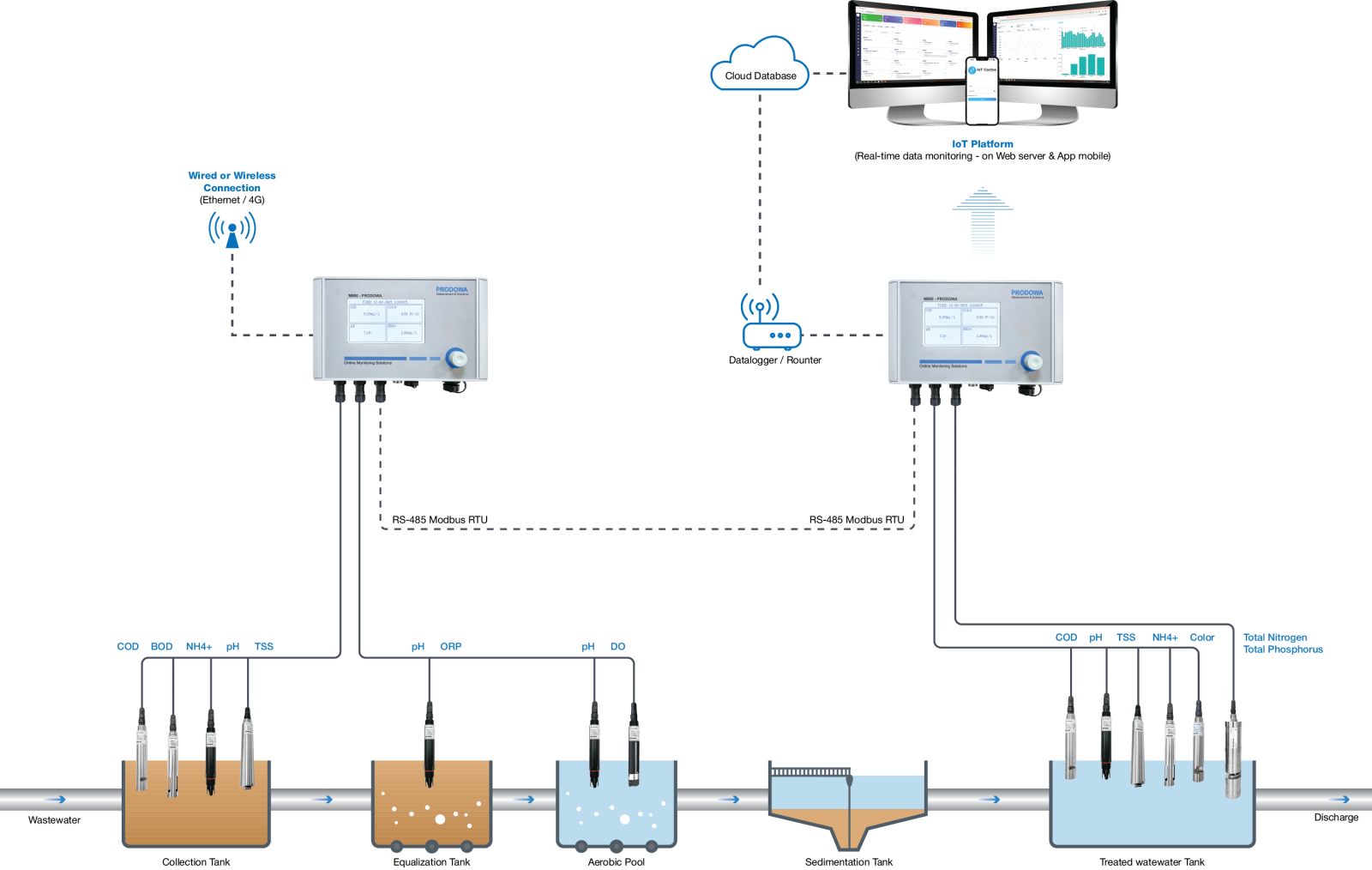

Prodowa’s monitoring system covers all critical tanks, from influent wastewater to treated effluent, with sensors measuring key parameters in real time. This enables operators to detect anomalies early, manage risks, and make accurate, timely decisions.
1. Collection Tank
In the collection tank, Prodowa sensors measure the main influent wastewater parameters:
-
COD (Chemical Oxygen Demand)
-
BOD (Biochemical Oxygen Demand)
-
NH4+ (Ammonium)
-
pH
-
TSS (Total Suspended Solids)
Monitoring the collection tank helps assess the incoming pollution load and adjust the efficiency of subsequent treatment stages.
2. Equalization Tank
In the equalization tank, sensors monitor:
-
pH
-
ORP (Oxidation-Reduction Potential)
The goal is to stabilize flow and pollutant concentrations before the water enters the biological tank, ensuring smooth and stable system operation.
3. Aerobic Biological Tank
In the aerobic biological tank, sensors measure:
-
pH
-
DO (Dissolved Oxygen)
Tracking these parameters ensures stable microbial activity and high biological treatment efficiency.
4. Sedimentation Tank
No direct sensors are installed in the sedimentation tank in the diagram, but this step is crucial for separating sludge and suspended solids, ensuring the water entering the treated wastewater tank is as clean as possible.
5. Treated Wastewater Tank
In the treated wastewater tank, sensors monitor the final parameters before discharge:
-
COD
-
pH
-
TSS
-
NH4+
-
Color
-
Total Nitrogen
-
Total Phosphorus
This ensures the treated water meets discharge standards and complies with legal regulations.
6. Benefits of the Prodowa Solution
-
Full-process monitoring from influent to treated wastewater
-
Continuous real-time measurement for early anomaly detection
-
Durable and accurate technology
-
Data easily retrievable, stored, and integrated into reports for regulatory authorities
