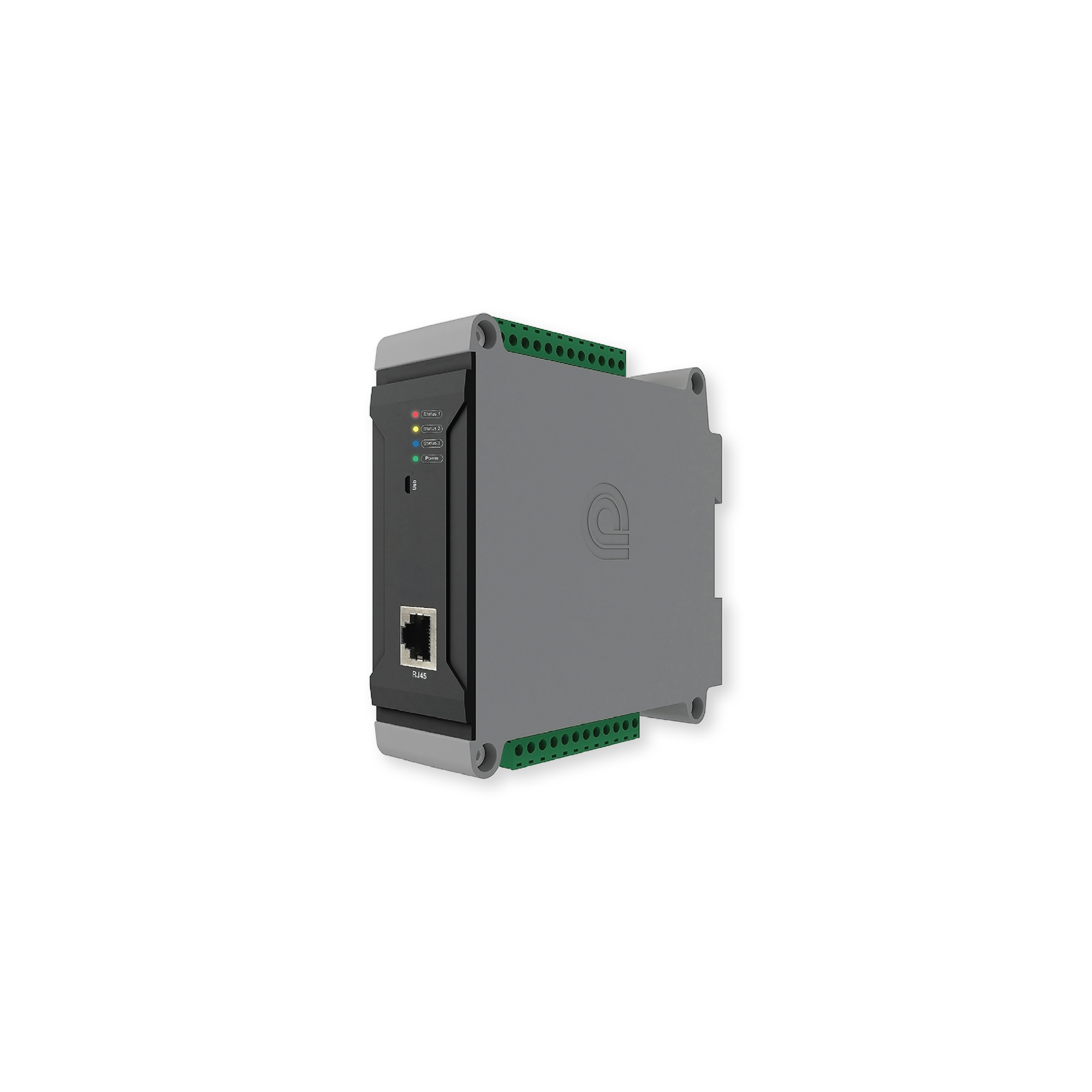

The M600M Datalogger connects field devices (pumps, fans, sensors, etc.) via analog, digital, and RS-485 signals and transmits data to the Cloud using the MQTT protocol over Ethernet. Users can monitor and control remotely through the Cactus IoT platform on a Web server and Mobile App.
FEATURES
• Real-time data monitoring
• Data logging on an SD card up to 64GB
• Supports MQTT protocol over Ethernet
• Supports 1 RS-485 Modbus RTU master
• 1 RJ45 port
• 6 analog inputs
• 8 digital inputs
• 2 digital/relay outputs
• Din-rail mounting

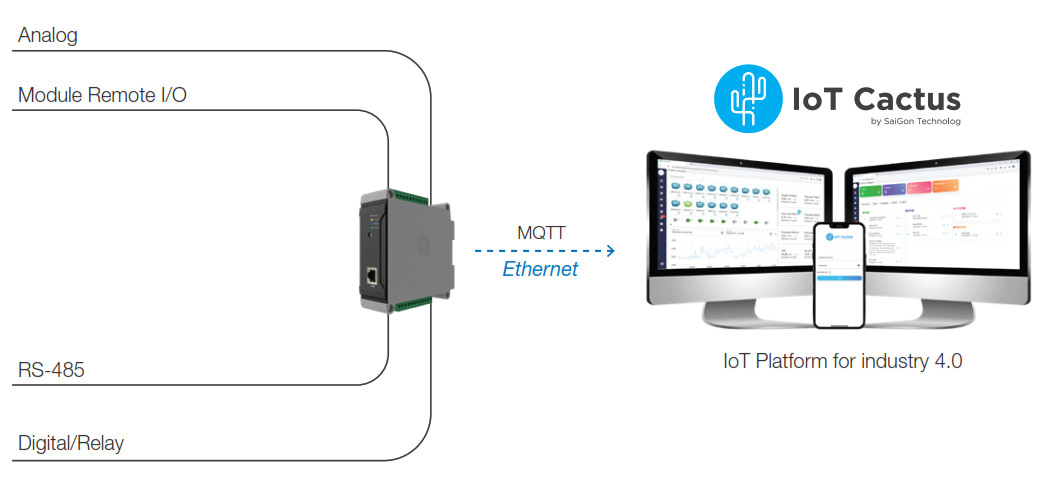

APPLICATION DESCRIPTION
TECHNICAL SPECIFICATIONS
|
Power Supply |
12..24 VDC |
|
Protection Rating |
IP20 |
|
Display |
- |
|
Sim card |
- |
|
Sd card |
Up to 64GB |
|
Operating Conditions |
-20..60°C, 0 to 95% RH |
|
Dimensions |
L125 x W125 x H40 mm |
|
Material |
ABS |
|
Installation Type |
DIN-rail |
|
Interfaces |
1 Micro-B port, 1 RJ-45 port |
|
Analog Input Channels |
6 Channels (4-20mA/0-10V), 24-bit |
|
Digital/Pulse Input Channels |
8 channels (supports flow rate m³/h, total flow m³) |
|
Digital/Relay Output Channels |
2 Channels |
|
Modbus RTU Communication |
Supports 1 RS-485 master (can connect to 5 RS-485 slaves) RS-485 Slave Support: Supports 1 RS-485 slave |
|
Data Transmission |
Supports MQTT protocols via Ethernet/4G |
DOCUMEMTATION
Datasheet:
Manual:
