The M200M is an IoT Gateway product line capable of connecting multiple field devices (sensors, pumps, fans, etc.) via inputs and outputs such as Analog (4-20 mA, 0-10 V), Digital, RS-485, and transmitting data to cloud storage & Web server via 3G network. It allows users to manage alarms and control remotely in real-time using the MQTT protocol.
FEATURES
-
Compact design, meets industrial standards, and withstands harsh environments.
-
Standardized, quick, and neat installation.
-
Simple and flexible system configuration, can be performed locally or remotely.
-
256MB Flash memory.
-
Micro SD card slot expandable up to 8GB.

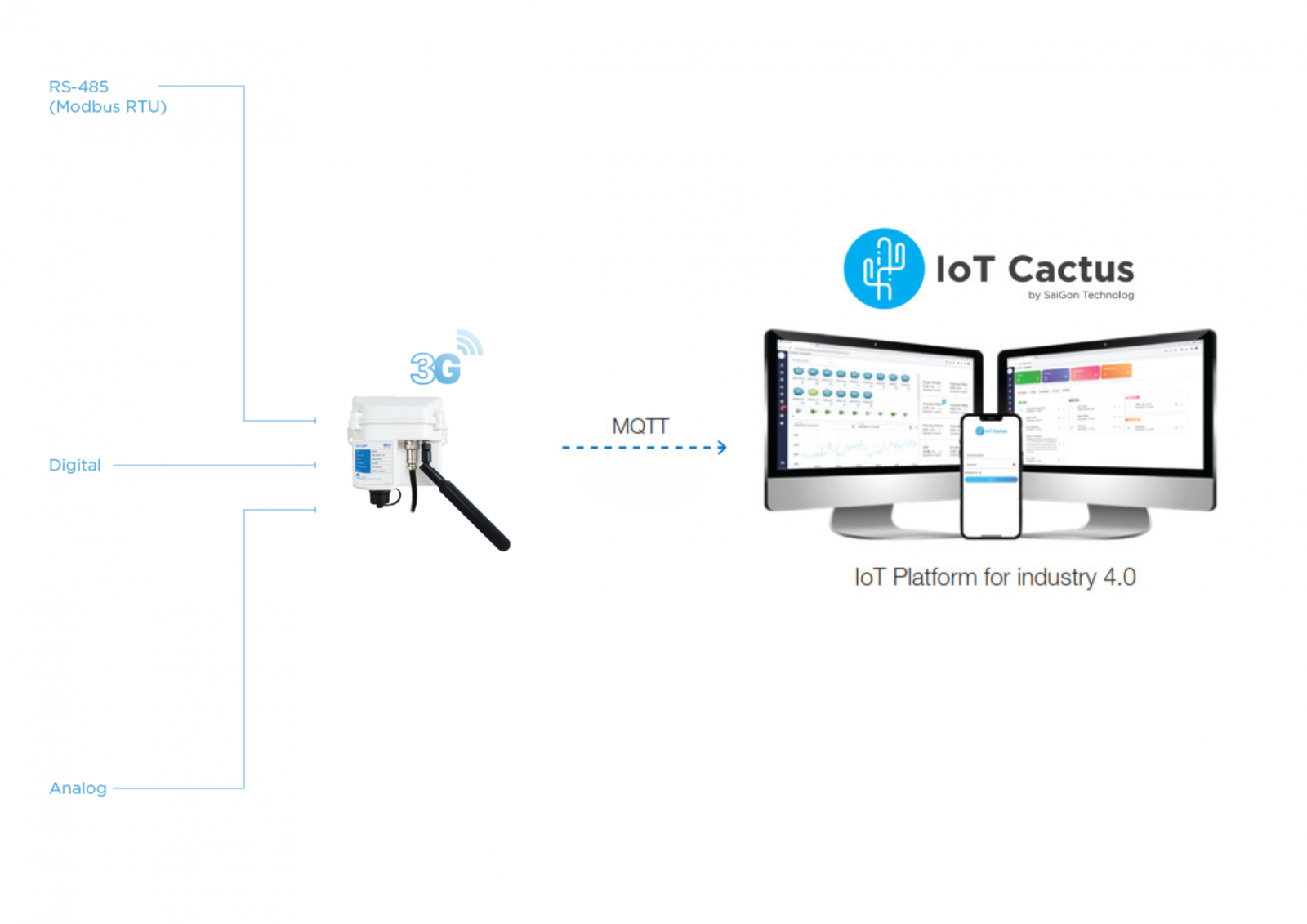

APPLICATION DESCRIPTION
.png)
TECHNICAL SPECIFICATIONS
|
MCU |
M3 Cortex ARM 32-bit |
|
Protection Rating |
IP20 |
|
USB |
1 x Type-A 2.0 port |
|
Power Supply |
12 đến 24 VDC |
|
Dimensions |
120 x 120 x 65 mm |
|
Installation |
Wall-mounted |
|
Protocols |
Modbus RTU, MQTT |
|
RS-485 Communication |
1 x RS-485 master: can connect simultaneously with 3 x RS-485 slaves |
|
Data Transmission |
Via 3G |
|
Analog Inputs |
8 Channels: 0-10 V, 4-20 mA Resolution: 24-bit |
|
Digital Inputs |
4 Channels |
|
Digital Outputs |
2 Channels |
DOCUMEMTATION
Datasheet:
Manual:
